Advantages of Forging

Cold forging can reduce your costs dramatically.

1. Ability to eliminate secondary processes & reduce scrap
   1. Possible elimination of "heat treatment" process (by hardening involved in cold forging)
   2. Elimination or reduction of "machining" process
2. Ability to select wide range of materials
   1. Low cost material
   2. Easier machining process
3. Ability to make parts more accurate and precise than "hot forging", without machining
   1. More accurate dimensions: centering, alignment, flatness, etc.
   2. Precision features: serrations, splines, gears, etc.

---

Forging Equipment

Large Former

• Manufactured by National Machinery (Tiffin, OH)
• 550 Metric Tons of force
• 6 die stations
• Max. part weight: 1,700g
• Max. kick-out: 185mm
• Machine cycle: 55 to 80 strokes per minute
• Raw material capacity: Steel wire diameter size from 17.0mm to 35.0mm

---

Small Former

• Manufactured by National Machinery (Tiffin, OH)
• 165 Metric Tons of force
• 6 die stations
• Max. part weight: 450g
• Max. kick-out: 150mm
• Machine cycle: 60 to 160 strokes per minute
• Raw material capacity: Steel wire diameter size from 9.5mm to 20.0mm

---

---

 Forging Process and Die Design

Our forging process technology and precision die design are fully supported by our parent company, Nippon Steel Precision Forge.

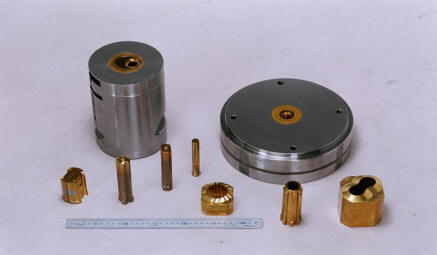

Precision die design
